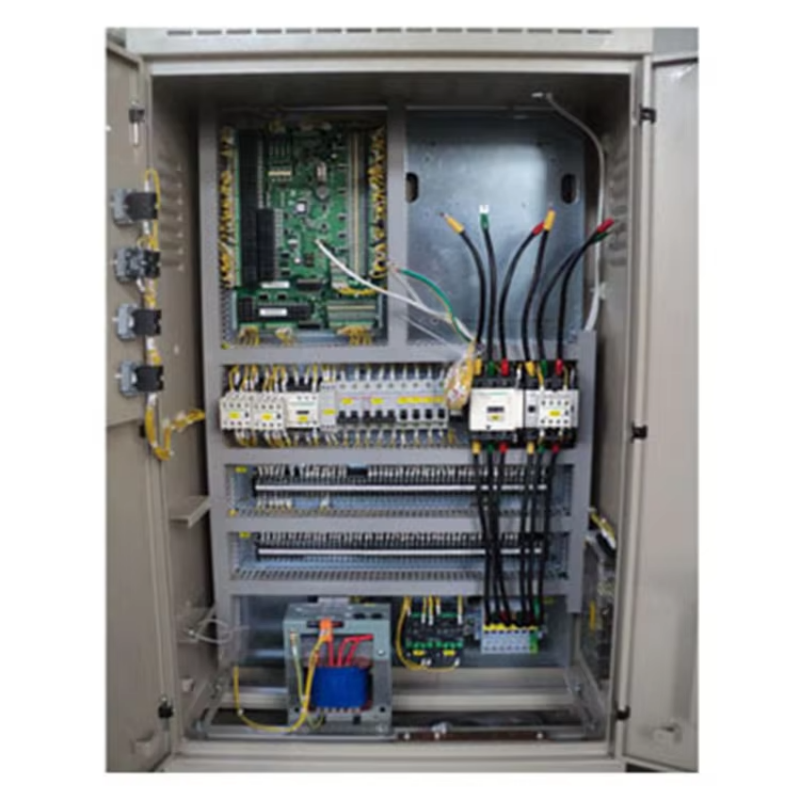

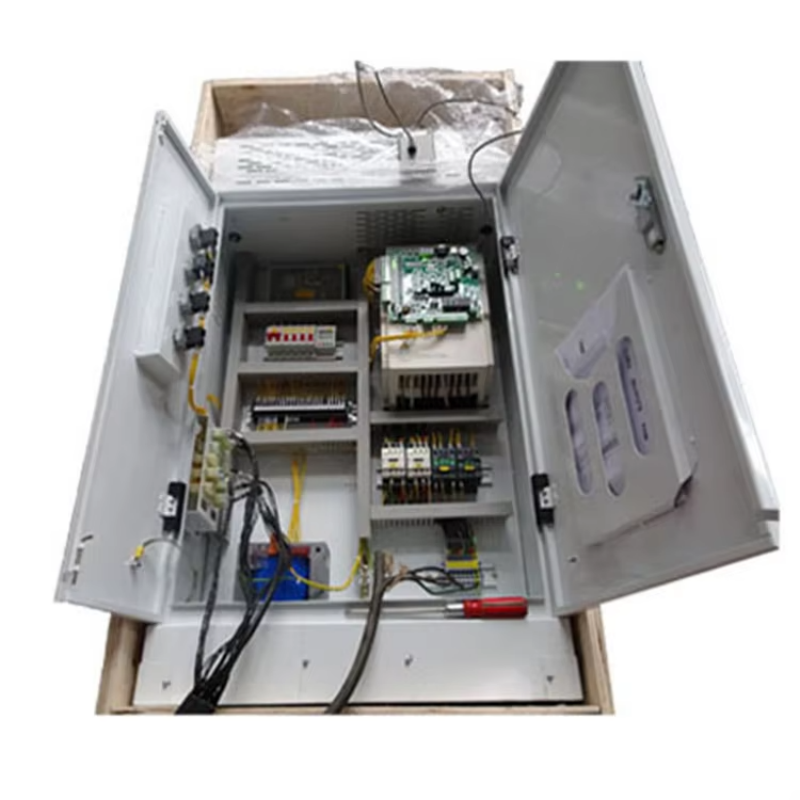

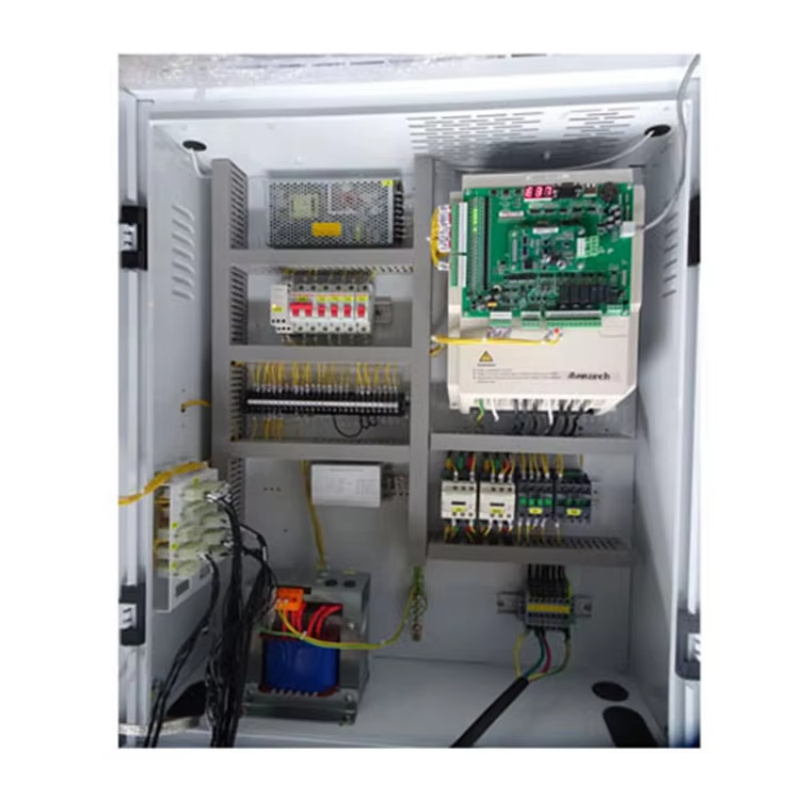

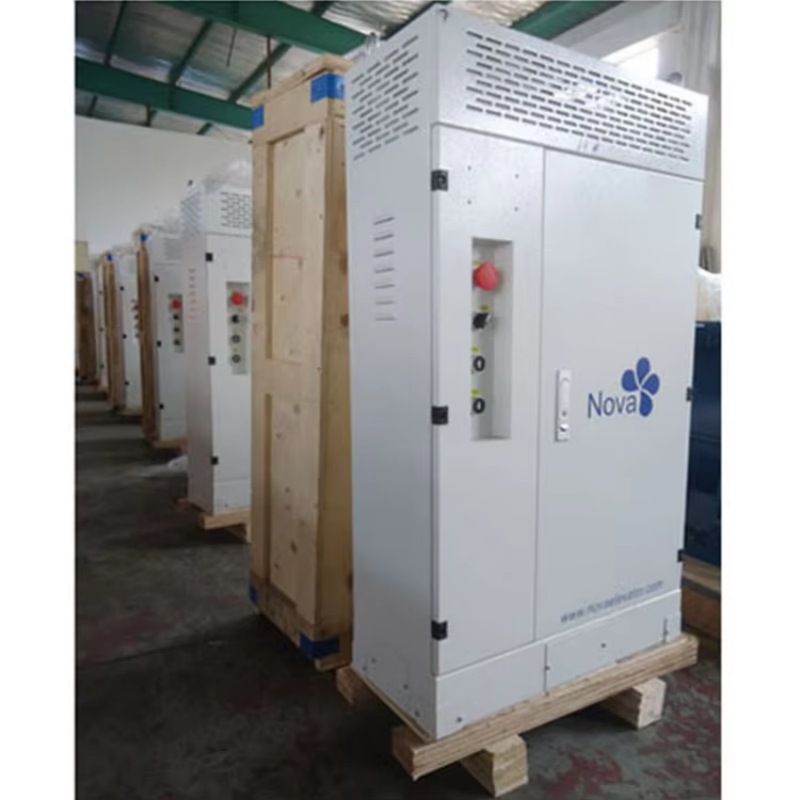

Rumah / Produk / Bahagian Lif / Komponen Elektrik / Kabinet Pengawal / VTSP310 Nice 3000 Step Lift Pengawal Kawalan Lif
Tersuai ####
| Kod Model | Bingkai | Input Arus(A) 30Ph | Arus Keluaran(A) 30Ph | Motor Biasa(kW) |
| NV-L-A/B-4002 | C | 6.5 | 5.1 | 2.2 |
| NV-L-A/B-4003 | C | 10.5 | 9.0 | 3.7 |
| NV-L-A/B-4005 | C | 14.8 | 13.0 | 5.5 |
| NV-L-A/B-4007 | D | 20.5 | 18.0 | 7.5 |
| NV-L-A/B-4011 | D | 29.0 | 27.0 | 11.0 |
| NV-L-A/B-4015 | D | 36.0 | 33.0 | 15.0 |
| NV-L-A/B-4018 | E | 41.0 | 39.0 | 18.5 |
| NV-L-A/B-4022 | E | 49.5 | 48.0 | 22.0 |
| NV-L-A/B-4030 | E | 62.0 | 60.0 | 30.0 |
| NV-L-A/B-4037 | F | 77.0 | 75.0 | 37.0 |
| NV-L-A/B-4045 | F | 93.0 | 91.0 | 45.0 |
| Kod Model | Tinggi(H) | Lebar (W) | Kedalaman(D) | Perintang maksimum(Ω) | Perintang min(Ω) | Kuasa perintang brek (W) | Unit Brek |
| NV-L-A/B-4002 | 347.0mm | 223.0mm | 143.0mm | 290.0 | 230.0 | 600 | Terbina Dalam |
| NV-L-A/B-4003 | 347.0mm | 223.0mm | 143.0mm | 170.0 | 135.0 | 1100 | |
| NV-L-A/B-4005 | 347.0mm | 223.0mm | 143.0mm | 115.0 | 90.0 | 1600 | |
| NV-L-A/B-4007 | 347.0mm | 223.0mm | 173.5mm | 85.0 | 65.0 | 2500 | |
| NV-L-A/B-4011 | 347.0mm | 223.0mm | 173.5mm | 55.0 | 43.0 | 3500 | |
| NV-L-A/B-4015 | 347.0mm | 223.0mm | 173.5mm | 43.0 | 35.0 | 4500 | |
| NV-L-A/B-4018 | 350.0mm | 210.0mm | 188.0mm | 34.0 | 25.0 | 5500 | |
| NV-L-A/B-4022 | 350.0mm | 210.0mm | 188.0mm | 24.0 | 22.0 | 6500 | |
| NV-L-A/B-4030 | 554.5mm | 289.6mm | 223.0mm | 20.0 | 16.0 | 9000 | |
| NV-L-A/B-4037 | 549.0mm | 385.0mm | 265.0mm | 16.0 | 13.0 | 11000 | Luaran |
| NV-L-A/B-4045 | 549.0mm | 385.0mm | 265.0mm | 14.0 | 11.0 | 13500 |
| Kod Model | Bingkai | Arus Input(A) 10Ph | Arus Input(A) 30Ph | Arus Keluaran(A) 10Ph | Arus Keluaran(A) 30Ph | Motor Biasa(kW) |
| NV-L-A/B-2002 | C | 9.2 | 11.0 | 5.2 | 9.6 | 1.1/2.2 |
| NV-L-A/B-2003 | C | 13.3 | 17.0 | 7.5 | 14.0 | 1.5/3.7 |
| 220-NV-L-A/B-4007 | D | 17.9 | 20.5 | 10.3 | 18.0 | 2.2/4.0 |
| 220-NV-L-A/B-4011 | D | 25.3 | 29.0 | 15.5 | 27.0 | 3.7/5.5 |
| 220-NV-L-A/B-4015 | D | 31.3 | 36.0 | 19.0 | 33.0 | 4.0/7.5 |
| 220-NV-L-A/B-4018 | E | 34.6 | 41.0 | 22.5 | 39.0 | 5.5/111.0 |
| 220-NV-L-A/B-4022 | E | 42.6 | 49.0 | 27.7 | 48.0 | 11.0/15.0 |
| 220-NV-L-A/B-4030 | E | 52.6 | 62.0 | 34.6 | 60.0 | 15.0/18.5 |
| Kod Model | Tinggi(H) | Lebar (W) | Kedalaman(D) | Perintang maksimum(Ω) | Perintang min(Ω) | Kuasa perintang brek (W) | Unit Brek |
| NV-L-A/B-2002 | 347.0mm | 223.0mm | 143.0mm | 145.0/72.0 | 125.0/65.0 | 300/600 | Terbina Dalam |
| NV-L-A/B-2003 | 347.0mm | 223.0mm | 143.0mm | 105.0/54.0 | 90.0/50.0 | 450/1100 | |
| 220-NV-L-A/B-4007 | 347.0mm | 223.0mm | 173.5mm | 72.0/40.0 | 63.0/35.0 | 600/1200 | |
| 220-NV-L-A/B-4011 | 347.0mm | 223.0mm | 173.5mm | 43.0/29.0 | 37.0/25.0 | 1100/1600 | |
| 220-NV-L-A/B-4015 | 347.0mm | 223.0mm | 173.5mm | 40.0/26.0 | 35.0/22.0 | 1200/2500 | |
| 220-NV-L-A/B-4018 | 350.0mm | 210.0mm | 188.0mm | 29.0/14.5 | 25.0/13.0 | 1600/3500 | |
| 220-NV-L-A/B-4022 | 350.0mm | 210.0mm | 188.0mm | 18.0/13.0 | 16.0/12.5 | 3500/4500 | |
| 220-NV-L-A/B-4030 | 554.5mm | 289.6mm | 223.0mm | 13.0/12.5 | 13.0/12.0 | 4500/5500 |
| Kod Model | Kuasa Dinilai(kVA) | Arus Output Dinilai (A) | Kuasa Motor yang Sesuai (kW) | Kod Model | Kuasa Dinilai(kVA) | Arus Output Dinilai (A) | Kuasa Motor yang Sesuai (kW) |
| Penyongsang 200V | Penyongsang 400V | ||||||
| 2S01P1 | 2.3 | 6.0 | 1.1 | 4T01P1 | 2.7 | 3.5 | 1.1 |
| 2S02P2 | 4.6 | 12 | 2.2 | 4T02P2 | 4.7 | 6.2 | 2.2 |
| 2S03P7 | 6.9 | 18 | 3.7 | 4T03P7 | 6.9 | 9 | 3.7 |
| 2T05P5 | 9.5 | 25 | 5.5 | 4T05P5 | 8.5 | 13 | 5.5 |
| 2T07P5 | 12.8 | 33 | 7.5 | 4T07P5 | 14 | 18 | 7.5 |
| 2T0011 | 17.9 | 47 | 11 | 4T0011 | 18 | 27 | 11 |
| 2T0015 | 23 | 60 | 15 | 4T0015 | 24 | 34 | 15 |
| 2T18P5 | 29 | 75 | 18.5 | 4T18P5 | 29 | 41 | 18.5 |
| 2T0022 | 32 | 80 | 22 | 4T0022 | 34 | 48 | 22 |
Jenama VITIN komited terhadap penyelidikan dan pembangunan, pembuatan dan eksport pelbagai produk eskalator lif dan aksesori lif. Ia mempunyai dua segmen perniagaan, Syarikat Aksesori VITIN dan Syarikat Teknologi Lif VITIN.
Pada masa yang sama, kami juga mempunyai kapasiti pengeluaran 100000 tan rel panduan lif setahun di bawah jenama kami sendiri.
Selepas bertahun-tahun pembangunan, syarikat di bawah jenama VITIN telah mengeksport lebih 800 kontena eskalator dan aksesori lif setiap tahun, meliputi jualan di lebih 50 negara dan wilayah termasuk Eropah, Amerika Utara dan Selatan, Asia Tenggara dan Timur Tengah.
